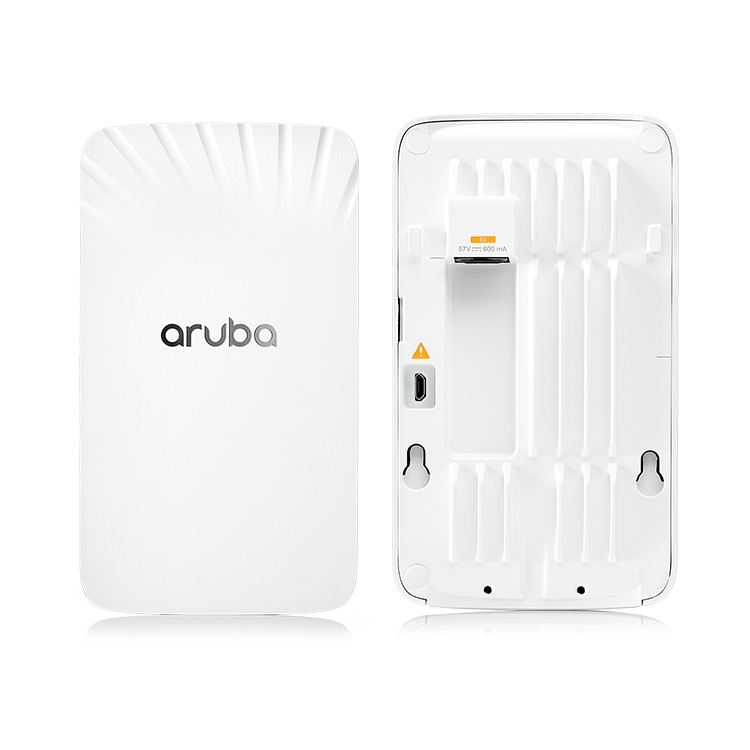

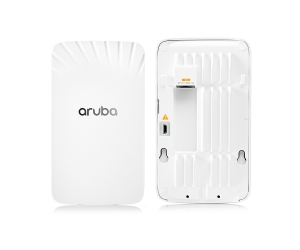

Aruba AP-505H R3V46A Wireless points Access Point

Aruba AP-505H R3V46A Wireless points Access Point

  • Brand Name:Aruba
  • Model:AP-505H(R3V46A)
  • Product name:Wireless AP
  • 5GHz  radio:
  • Two spatial stream (SU/MU) MIMO for up to 1.2Gbps wireless data rate (HE80)
  • 2.4GHz radio:
  • Two spatial stream (SU/MU) MIMO for up to 287Mbps wireless data rate (HE20)
  • Note: HE40 operation is supported in 2.4GHz, but uncommon and not recommended for enterprise deployments

HARDWARE VARIANTS
    • AP-505H
      • 5GHz: radio:
        • Two spatial stream (SU/MU) MIMO for up to 1.2Gbps wireless data rate (HE80)
      • 2.4GHz radio:
        • Two spatial stream (SU/MU) MIMO for up to 287Mbps wireless data rate (HE20)
        • Note: HE40 operation is supported in 2.4GHz, but uncommon and not recommended for enterprise deployments
WI-FI RADIO SPECIFICATIONS
  • AP type:
    • High-end dual radio Wi-Fi 6 Hospitality AP with 1+4 Ethernet ports
  • Maximum number of associated client devices:
    • Up to 256 associated client devices per radio
  • Maximum number of BSSIDs:
    • 16 BSSIDs per radio
  • Supported frequency bands (country-specific restrictions apply):
    • 2.400 to 2.500GHz (ISM) channels 1-13
    • 5.150 to 5.250GHz (U-NII-1) channels 36, 40, 44, 48
    • 5.250 to 5.350GHz (U-NII-2A) channels 52, 56, 60, 64
    • 5.470 to 5.725GHz (U-NII-2C) channels 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144
    • 5.725 to 5.850GHz (U-NII-3) channels 149, 153, 157, 161, 165
  • Dynamic frequency selection (DFS) optimizes the use of available RF spectrum
  • Supported radio technologies:
    • 802.11b: Direct-sequence spread-spectrum (DSSS)
    • 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
    • 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 8 resource units
  • Supported modulation types:
    • 802.11b: BPSK, QPSK, CCK
    • 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension)
    • 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension)
    • 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
  • 802.11n high-throughput (HT) support:
    • HT20/40
  • 802.11ac very high throughput (VHT) support:
    • VHT20/40/80
  • Supported data rates (Mbps):
    • 802.11b: 1, 2, 5.5, 11
    • 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
    • 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM
    • 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80), 1,083 with 1024-QAM
    • 802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)
    • 802.11ax (5GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80)
  • 802.11n/ac packet aggregation:
    • A-MPDU, A-MSDU
  • Transmit power:
    • Configurable in increments of 0.5 dBm
  • Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements):
    • 2.4 GHz band: +20 dBm (17 dBm per chain)
    • 5 GHz band: +21 dBm (18 dBm per chain)
    • Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain
  • Minimum configurable transmit power level:
    • 0 dBm (conducted, per chain)
  • Advanced Cellular Coexistence (ACC):
    • Minimizes the impact of interference from cellular networks
  • Advanced IOT Coexistence (AIC):
    • Allows concurrent operation of multiple radios in the 2.4GHz band
  • Maximum ratio combining (MRC):
    • For improved receiver performance
  • Cyclic delay/shift diversity (CDD/CSD):
    • For improved downlink RF performance
  • Space-time block coding (STBC):
    • For increased range and improved reception
  • Low-density parity check (LDPC):
    • For high-efficiency error correction and increased throughput
  • Transmit beam-forming (TxBF):
    • For increased signal reliability and range
  • 802.11ax Target Wait Time (TWT):
    • To support low-power client devices
  • VPN IPsec throughput performance:
    • 500Mbps or better
WI-FI RADIO SPECIFICATIONS
  • AP type:
    • High-end dual radio Wi-Fi 6 Hospitality AP with 1+4 Ethernet ports
  • Maximum number of associated client devices:
    • Up to 256 associated client devices per radio
  • Maximum number of BSSIDs:
    • 16 BSSIDs per radio
  • Supported frequency bands (country-specific restrictions apply):
    • 2.400 to 2.500GHz (ISM) channels 1-13
    • 5.150 to 5.250GHz (U-NII-1) channels 36, 40, 44, 48
    • 5.250 to 5.350GHz (U-NII-2A) channels 52, 56, 60, 64
    • 5.470 to 5.725GHz (U-NII-2C) channels 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144
    • 5.725 to 5.850GHz (U-NII-3) channels 149, 153, 157, 161, 165
  • Dynamic frequency selection (DFS) optimizes the use of available RF spectrum
  • Supported radio technologies:
    • 802.11b: Direct-sequence spread-spectrum (DSSS)
    • 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
    • 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 8 resource units
  • Supported modulation types:
    • 802.11b: BPSK, QPSK, CCK
    • 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension)
    • 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension)
    • 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
  • 802.11n high-throughput (HT) support:
    • HT20/40
  • 802.11ac very high throughput (VHT) support:
    • VHT20/40/80
  • Supported data rates (Mbps):
    • 802.11b: 1, 2, 5.5, 11
    • 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
    • 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM
    • 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80), 1,083 with 1024-QAM
    • 802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)
    • 802.11ax (5GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80)
  • 802.11n/ac packet aggregation:
    • A-MPDU, A-MSDU
  • Transmit power:
    • Configurable in increments of 0.5 dBm
  • Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements):
    • 2.4 GHz band: +20 dBm (17 dBm per chain)
    • 5 GHz band: +21 dBm (18 dBm per chain)
    • Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain
  • Minimum configurable transmit power level:
    • 0 dBm (conducted, per chain)
  • Advanced Cellular Coexistence (ACC):
    • Minimizes the impact of interference from cellular networks
  • Advanced IOT Coexistence (AIC):
    • Allows concurrent operation of multiple radios in the 2.4GHz band
  • Maximum ratio combining (MRC):
    • For improved receiver performance
  • Cyclic delay/shift diversity (CDD/CSD):
    • For improved downlink RF performance
  • Space-time block coding (STBC):
    • For increased range and improved reception
  • Low-density parity check (LDPC):
    • For high-efficiency error correction and increased throughput
  • Transmit beam-forming (TxBF):
    • For increased signal reliability and range
  • 802.11ax Target Wait Time (TWT):
    • To support low-power client devices
  • VPN IPsec throughput performance:
    • 500Mbps or better
WI-FI ANTENNAS
  • Two integrated semi-directional antennas for 2x2 MIMO with peak antenna gain of 5.0dBi in 2.4GHz and 5.4dBi in 5GHz.
    • Built-in antennas are optimized for vertical wall or desk mounted orientation of the AP.
    • Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the combined, average pattern is 3.3dBi in 2.4GHz and 2.4dBi in 5GHz.
OTHER INTERFACES

  • Uplink (E0): Smart Rate Ethernet wired network port (RJ45)
    • Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX
    • 2.5Gbps speed complies with NBase-T and 802.3bz specifications
    • 802.3az Energy Efficient Ethernet (EEE)
    • PoE-PD: 802.3af/at/bt POE (class 3, 4 or 6)
  • Local (E1-E4): Four Ethernet wired network ports (RJ45)
    • Auto-sensing link speed (10/100/1000BASE-T) and MDI/MDX
    • 802.3az Energy Efficient Ethernet (EEE)
    • E1 & E2: PoE-PSE: 802.3af/at PoE output; dual 802.3af (both ports) or single 802.3at (E1 only)
  • DC power interface
    • 48Vdc (nominal, +/- 5%), accepts 1.35mm/3.5mm center-positive circular plug with 9.5mm length
  • USB 2.0 host interface (Type A connector)
    • Cellular modems
    • IOT or other plug-in accessories
    • Device battery charging port
    • Capable of sourcing up to 1A / 5W to an attached device
  • Bluetooth Low Energy (BLE5.0) and Zigbee (802.15.4) radio
    • BLE: up to 7dBm transmit power (class 1) and -100dBm receive sensitivity (125kbps)
    • Zigbee: up to 7dBm transmit power and -97dBm receive sensitivity (250kbps)
    • Integrated semi-directional antenna with peak gain of 1.2dBi
  • Visual indicators (multi-color LEDs):
    • Power/System status
    • Radio status
    • Local network port status (4x)
    • PoE-PSE status (2x)
  • Reset button:
    • Factory reset, LED mode control (normal/off)
  • Serial console interface:
    • Proprietary, micro-B USB physical jack
POWER SOURCES AND POWER CONSUMPTION

  • Power Sources:
    • The AP supports direct DC power and Power over Ethernet
    • When both DC and PoE power sources are available, DC power takes priority over PoE
    • Power sources are sold separately; see the 500H Series Ordering Guide for details
    • When powered by DC or 802.3bt (class 6) PoE, the AP will operate without restrictions.
    • When powered by 802.3at (class 4) PoE with the IPM feature disabled, the AP will disable the USB port (only) if PoE-PSE is enabled, and support (802.3af) PoE-PSE power on E1 only (no PSE on E2).
    • When powered by 802.3af (class 3) PoE with the IPM feature disabled, the AP will disable the USB port and PoE-PSE capability as well as ports E3 and E4.
    • With IPM enabled, the AP will start up without restrictions, but may dynamically apply restrictions depending on the PoE budget and actual power consumption. The specific restrictions and order in which they are applied can be configured.
  • Maximum (worst-case) power consumption (without USB or PSE / max):
    • DC powered: 14W / 50W
    • PoE powered (802.3bt): 14W / 51W
    • PoE powered (802.3at): 14W / 25.5W
    • PoE powered (802.3af): 13.5W / 13.5W
  • Maximum (worst-case) power consumption in idle mode (without USB or PSE):
    • 6.2W
  • Maximum (worst-case) power consumption in deep-sleep mode (without USB or PSE):
    • 3.5W
MECHANICAL

  • Dimensions/weight (AP- 505; unit, excluding mount bracket):
    • 86mm (W) x 47mm (D) x 150mm (H)
    • Weight: 360g
  • Dimensions/weight (AP-505; shipping):
    • 111mm (W) x 54mm (D) x 167mm (H)
    • Weight: 450g
ENVIRONMENTAL

  • Operating:
    • Temperature: 0°C to +40°C / 32°F to +104°F
    • Humidity: 5% to 93% non-condensing
    • ETS 300 019 class 3.2 environments
  • Storage and transportation:
    • Temperature: -40°C to +70°C / -40°F to +158°F
    • Humidity: 5% to 93% non-condensing
    • ETS 300 019 classes 1.2 and 2.3 environments

RELIABILITY
  • Mean Time Between Failure (MTBF):
    • 780khrs (88yrs) at +25C operating temperature.
