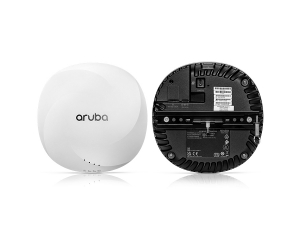

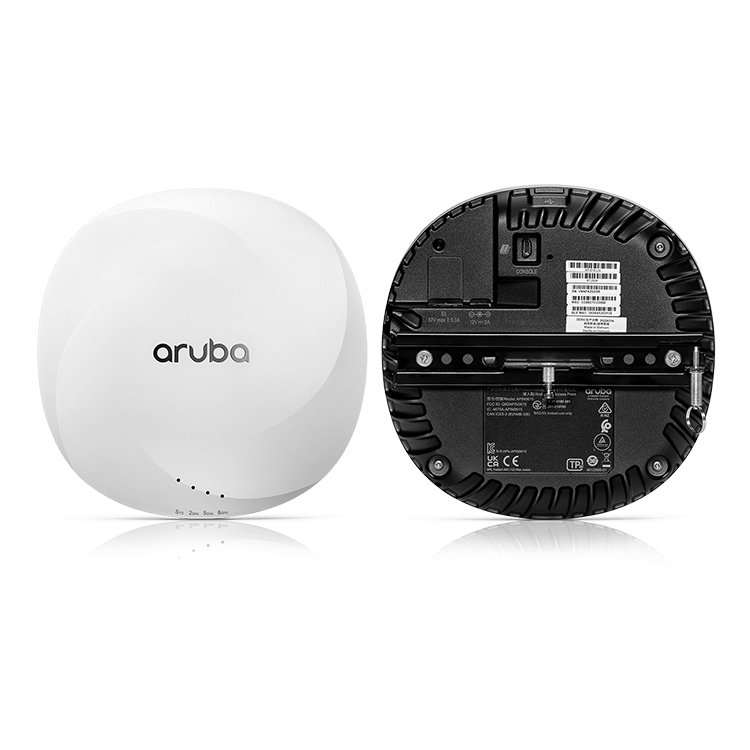

Aruba 615 Access Points Wi-Fi 6E - 2.4 GHz, 5 GHz, 6 GHz
- Brand:Aruba
- Model:AP-615
- Configurable dual radios
- Low power, compact form factor
- 2.5 Gbps Smart Rate Ethernet port
- Compact and cost-effective Wi-Fi 6E platform
Overview:
Deliver the highest levels of performance with Wi-Fi 6E — greater capacity, wider channels, and less interference — in a compact, cost-effective form factor.
For enterprises who need more wireless capacity and/or wider channels, Aruba 610 Series Campus APs are designed to take advantage of the newly available 6 GHz spectrum using a unique dual-radio/tri-band architecture. Adding support for the 6 GHz band to the traditional 2.4 GHz and 5 GHz bands more than doubles the available wireless capacity in a wireless network – so you can meet growing demand due to bandwidth-hungry video, increasing numbers of client and IoT devices, and growth in cloud.
Unique to Aruba, the 610 Series features two radios that can be tuned to any two of the three available spectrum bands for Wi-Fi (2.4 GHz, 5 GHz, 6 GHz). This flexibility provides a cost-effective and compact platform that delivers full tri-band coverage as part of a multi-AP deployment and can be used with software that will intelligently and flexibly configure the radios of each of these dual-radio APs.
Meet Aruba’s compact, cost-effective Wi-Fi 6E access point
More capacity to meet growing demands. The new 610 Series provides fast, resilient, and secure Wi-Fi 6E connectivity in a compact and affordable platform.
Deliver the highest levels of performance with Wi-Fi 6E — greater capacity, wider channels, and less interference — in a compact, cost-effective form factor.
For enterprises who need more wireless capacity and/or wider channels, Aruba 610 Series Campus APs are designed to take advantage of the newly available 6 GHz spectrum using a unique dual-radio/tri-band architecture. Adding support for the 6 GHz band to the traditional 2.4 GHz and 5 GHz bands more than doubles the available wireless capacity in a wireless network – so you can meet growing demand due to bandwidth-hungry video, increasing numbers of client and IoT devices, and growth in cloud.
Unique to Aruba, the 610 Series features two radios that can be tuned to any two of the three available spectrum bands for Wi-Fi (2.4 GHz, 5 GHz, 6 GHz). This flexibility provides a cost-effective and compact platform that delivers full tri-band coverage as part of a multi-AP deployment and can be used with software that will intelligently and flexibly configure the radios of each of these dual-radio APs.
Meet Aruba’s compact, cost-effective Wi-Fi 6E access point
More capacity to meet growing demands. The new 610 Series provides fast, resilient, and secure Wi-Fi 6E connectivity in a compact and affordable platform.
Greater capacity with 6GHz
The Aruba 610 Series extends all the benefits of Wi-Fi 6 to the 6 GHz band: speed, more 80/160 MHz channels, and less interference to support high-definition video and more clients.
Cost-effective and compact
For enterprises who needed more wireless capacity and/or wider channels, the Aruba 610 Series features two radios that can be tuned to any two of the three available spectrum bands for cost-effective connectivity in a compact form factor. The 610 Series provides tri-band coverage when deployed in a multi-AP environment.
Highly efficient and secure
Wi-Fi 6E extends support to the 6 GHz band based on the 802.11ax standard. 802.11ax provides greater efficiency and higher levels of guest and password security with orthogonal frequency-division multiple access (OFDMA), Enhanced Open, and WPA3. The 610 Series APs also offer client optimization, automated radio frequency management, and intelligent power monitorin
Greater IoT support
Aruba 610 Series APs act as an IoT transport platform without the need to deploy or manage overlay gateways. The APs include integrated Bluetooth Low Energy 5 (BLE) and 802.15.4/Zigbee radios plus dynamic segmentation for added security making it easier to deploy and manage.
Wi-Fi radio specifications- AP type: Indoor, dual-radio/tri-band 2.4GHz, 5GHz and 6GHz (dual concurrent) 802.11ax 2x2 MIMO
- 2.4GHz radio: Two spatial stream Single User (SU) MIMO for up to 574Mbps wireless data rate with 2SS HE40 802.11ax client devices (287Mbps for HE20)
- 5GHz radio: Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate with 2SS HE80 802.11ax client devices
- 6GHz radio: Two spatial stream Single User (SU) MIMO for up to 2.4Gbps wireless data rate with 2SS HE160 802.11ax client devices
- Up to 512 associated client devices per radio, and up to 16 BSSIDs per radio (limited to 4 for the 6GHz radio)
- Supported frequency bands (country-specific restrictions apply)*:
- 2.400 to 2.4835 GHz
- 5.150 to 5.250 GHz
- 5.250 to 5.350 GHz
- 5.470 to 5.725 GHz
- 5.725 to 5.850 GHz
- 5.850 to 5.895 GHz
- 5.925 to 6.425 GHz
- 6.425 to 6.525 GHz
- 6.525 to 6.875 GHz
- 6.875 to 7.125 GHz
ISM
U-NII-1
U-NII-2
U-NII-2E
U-NII-3/ISM
U-NII-4
U-NII-5
U-NII-6
U-NII-7
U-NII-8 - Available bands and channels: Dependent on configured regulatory domain (country)
- Dynamic frequency selection (DFS) optimizes the use of available RF spectrum in the 5 GHz band
- Supported radio technologies:
- 802.11b: Direct-sequence spread-spectrum (DSSS)
- 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
- 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 8 resource units
- Supported modulation types:
- 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM and 256-QAM (proprietary extension)
- 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM and 1024-QAM (proprietary extension)
- 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM and 1024-QAM
- 802.11n high-throughput (HT) support: HT20/40
- 802.11ac very high throughput (VHT) support: VHT20/40/80
- 802.11ax high efficiency (HE) support: HE20/40/80/160
- Supported data rates (Mbps):
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
- 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM (proprietary extension)
- 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80); 1,083 with 1024-QAM (MCS10 and MCS11, proprietary extension)
- 802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)
- 802.11ax (5GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80)
- 802.11ax (6GHz): 3.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE160)
- 802.11n/ac packet aggregation: A-MPDU, A-MSDU
- Transmit power: Configurable in increments of 0.5 dBm
- Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements):
- Per radio/band (2.4 GHz/5 GHz/6 GHz): +21 dBm (18 dBm per chain)
- Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain.
- Advanced Cellular Coexistence (ACC) minimizes the impact of interference from cellular networks
- Maximum ratio combining (MRC) for improved receiver performance
- Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance
- Space-time block coding (STBC) for increased range and improved reception
- Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
- Transmit beam-forming (TxBF) for increased signal reliability and range
- 802.11ax Target Wait Time (TWT) to support low-power client devices
- 802.11mc Fine Timing Measurement (FTM) for precision distance ranging
Wi-Fi antennas
- AP-615: Integrated downtilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 2.8dBi in 2.4GHz, 4.5dBi in 5GHz and 4.5dBi in 6GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 to 40 degrees.
- Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the combined, average pattern is 2.0dBi in 2.4GHz, 3.5dBi in 5GHz and 3.4dBi in 6GHz
- E0: Ethernet wired network ports (RJ-45)
- Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX
- 2.5Gbps speed complies with NBase-T and 802.3bz specifications
- POE-PD: 48Vdc (nominal) 802.3af/at POE (class 3 or higher)
- 802.3az Energy Efficient Ethernet (EEE)
- Capable of sourcing up to 1A / 5W to an attached device
- BLE: up to 5dBm transmit power (class 1) and -100dBm receive sensitivity (125kbps)
- Zigbee: up to 5dBm transmit power and -97dBm receive sensitivity (250kbps)
- Integrated omnidirectional antenna with roughly 30 to 40 degrees downtilt and peak gain of 2.6dBi
- Receive sensitivity: -162dBm (tracking)
- Integrated omnidirectional antenna with roughly 30 to 40 degrees downtilt and peak gain of 2.3dBi
- The AP supports direct DC power and Power over Ethernet (POE) on port E0
- When both DC and POE power sources are available, DC power takes priority over POE
- Power sources are sold separately; see the 610 Series Ordering Guide for details
- When powered by DC or 802.3at (class 4) POE, the AP will operate without restrictions.
- When powered by 802.3af (class 3) POE with the IPM feature disabled, the AP will disable the USB port.
- With IPM enabled, the AP will start up in unrestricted mode but may dynamically apply restrictions depending on the available power budget and actual consumption. The feature restrictions and order in which these get applied are configurable.
- Maximum (worst-case) power consumption (without / with a USB device attached):
- DC powered: 12.5W/18.2W.
- POE powered: 14.7W/20.9W.
- This assumes that up to 5W is supplied to the attached USB device.
| POE source | class 4 (802.3at) | class 3 (802.3af) |
|---|---|---|
| Power budget | 25.5W | 13.9W |
| Power mode | Unrestricted | Restricted |
| USB port | Enabled | Disabled |
| Ethernet | Enabled | Enabled |
| MIMO | 2x2 | 2x2 |
| Max RF power reduction | 0dB | 0dB |
A mounting bracket has been pre-installed on the back of the AP. This bracket is used to secure the AP to any of the mount kits (sold separately); see the 610 Series Ordering Guide for details.
| Mechanical specifications |
|---|
|
| Environmental specifications |
|---|
- Operating conditions
- Temperature: 0C to +50C / +32F to +122F
- Relative humidity: 5% to 95%
- ETS 300 019 class 3.2 environments
- AP is plenum rated for use in air-handling spaces
- Temperature: -25C to +55C / +13F to +131F
- Relative humidity: 10% to 100%
- ETS 300 019 class 1.2 environments
- Temperature: -40C to +70C/-40F to +158F
- Relative humidity: up to 95%
- ETS 300 019 class 2.3 environments
